Product Details:
|
| Type: | Wall Saws | Cutting Material: | Reinforced Concrete |
|---|---|---|---|
| Pin Hole: | No | Application: | Electric Tracking Machine, Air Or Hydraulic Saws |
| Segment Type: | Single U Shaped | Segment Height: | 10mm, 12mm |
| Highlight: | concrete wall cutting saw,concrete wall saw |
||

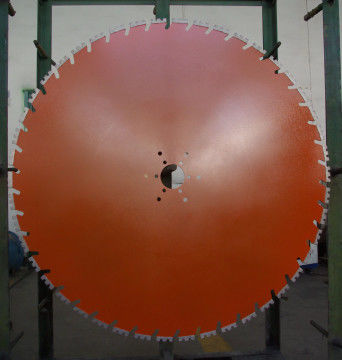

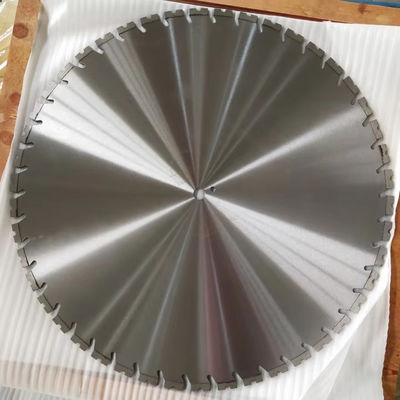

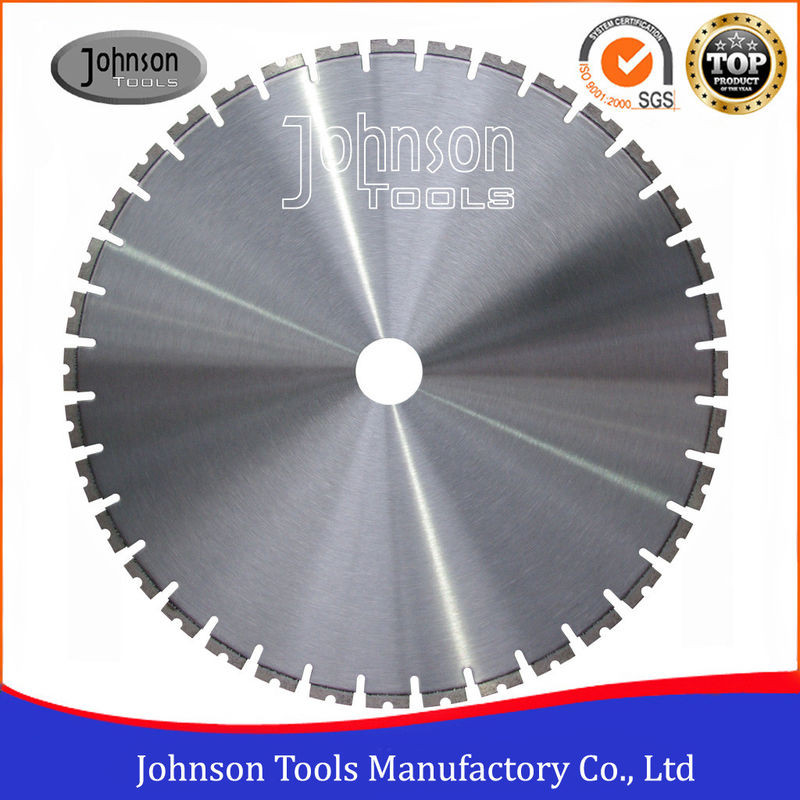

600-1600mm Laser Welded Wall Saw Blades for Wall Saws without Flush-cut Bolt Holes
Feature
1. 100% laser welding technology.
2. Steel cores comes from one of largest steel blanks factory in China.
3. Suit to 10HP to 85HP, or do as your request.
4. No any flush-cut bolt holes size.
5. Dry cutting.
6. Widely used for delimotion works, civil engineering etc.
Specification
1. Diameter:600-1600mm
2. Segment length:40mm
3. Segment thickness:4.8/5mm
4. Segment height:10/12mm
5. Arbor hole size:25.4mm, 50mm, 60mm, 80mm or as your request
| Inch |
Diameter (mm) |
Teeth length (mm) |
Teeth thickness (mm) |
Teeth height (mm) |
Teeth number (nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 40" | 1000 | 40 | 4.8/5 | 10/12 | 58 |
| 48” | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56” | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60” | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64” | 1600 | 40 | 4.8/5 | 10/12 | 92 |
Packing
1. 600-1000mm diamond saw blade, 5pcs packed in one plywood, 1200-1600mm saw blades, 2-3pcs packed in one plywood.
2. Net weight: 6-56kg.
3. Gross weight:45kg-187kg per plywood. Around 350-400kg, need to packed in one pallet.
About us
1. We're a direct manufacturer and 100% export diamond tools to worldwide( American, Canada, Thailand, Singapore, Hongkong, Coratia, Iceland, CZ, Malaysia, Netherland, UK, Sweden, UAE, India, Saudi Arabia etc)
2. Found in 2000 years.
3. Main product:laser welded saw blade, sintered saw blade, diamond segments, diamond polishing and grinding products, cup wheel, core bits and electroplated diamond products ect.
4. Above 95% customers will place a formal order after testing the samples.
